Hero 120H

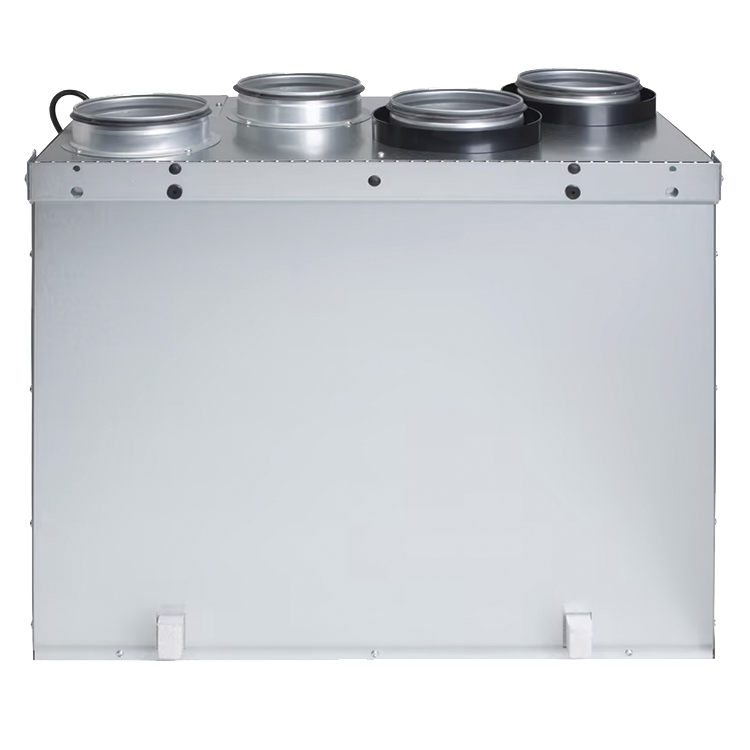

Hero 120H by Fantech
Your airtight home enhances energy efficiency, but it also traps indoor pollutants. The air inside your home can be up to 70% more polluted than outdoor air, and we spend most of our time indoors.

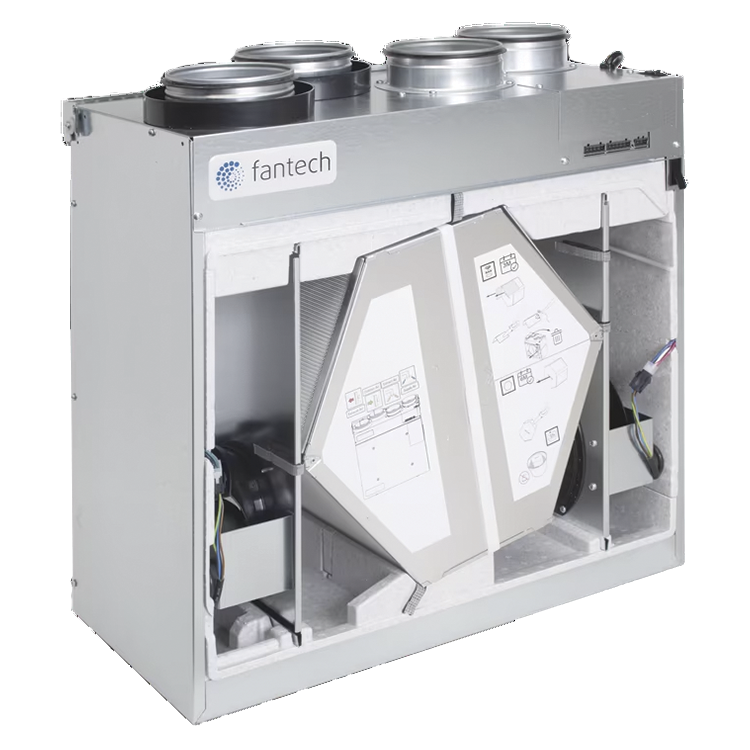

The Hero 120 by Fantech is a heat recovery ventilator (HRV) that refreshes your home’s air up to 20 times per day, while recovering 80% of the energy, ensuring optimal comfort and better indoor air quality.
Breathe easier with the Hero 120!
MARQUE: FANTECH
MODEL: Hero 120H
- -Heat Recovery Ventilator (HRV)
- -Airflows up to 252 cfm at 0.4" w.g.
- -5" duct connection (HERO 120H)
- -6" duct connection (all other models)
- -Rubberized duct gaskets on metal collars
- -Optional MERV8 and MERV13 filters
- -Integrated balancing taps for commissioning
- -Energy-efficient counterflow core with SRE up to 82% (0C/32F)
- -Front access for fast and easy maintenance
- -Improves the home's HERS score towards a NetZero status and lowers energy costs
- -Certifications: CSA, HVI, ENERGY STAR
- -Limited warranty (lifetime on core, 7 years on motors, 5 years on parts)
Models specifications and capacity
|
Specifications of HERO Heat Recovery Models |
||||||||||||
| Model | Average Airflow (cfm) | Voltage / Phase (V/~) | Duct Connection Size (in) | Rated Power (W) | Max. Sensible Recovery Efficiency (%) | Max Current (A) | Defrost Cycle | Height (in) | Depth (in) | Width (in) | Shipping Weight (Kg) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HERO 120H | 119 (56) | 120/1 | 5 (127) | 165 | 80 | 1.2 | Recirculation | 24 1/4 (616) | 11 1/2 (292) | 23 1/4 (591) | 21.3 (47) | |
| HERO 150H | 161 (76) | 120/1 | 6 (152) | 180 | 80 | 1.4 | Recirculation | 24 7/8 (632) | 13 3/8 (340) | 27 7/8 (708) | 26.6 (59) | |
| HERO 200H | 218 (103) | 120/1 | 6 (152) | 210 | 80 | 2.0 | Recirculation | 24 7/8 (632) | 15 3/8 (391) | 27 7/8 (708) | 28.8 (64) | |
| HERO 150H-EC | 176 (83) | 120/1 | 6 (152) | 110 | 82 | 3.0 | Recirculation | 24 7/8 (632) | 13 3/8 (340) | 27 7/8 (708) | 26.5 (58) | |
| HERO 250H-EC | 263 (124) | 120/1 | 6 (152) | 230 | 82 | 6.4 | Recirculation | 24 7/8 (632) | 15 3/8 (391) | 27 7/8 (708) | 28.2 (62) | |
