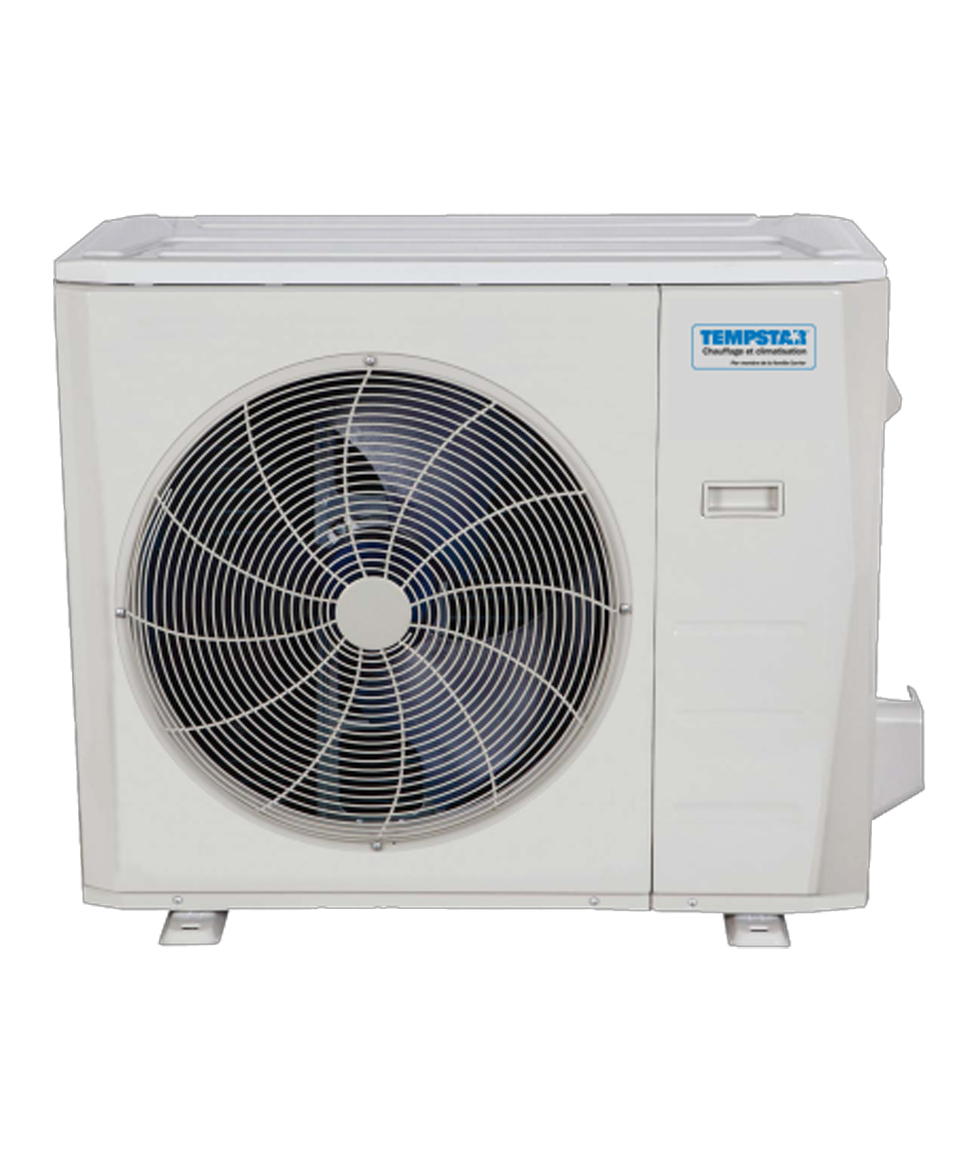

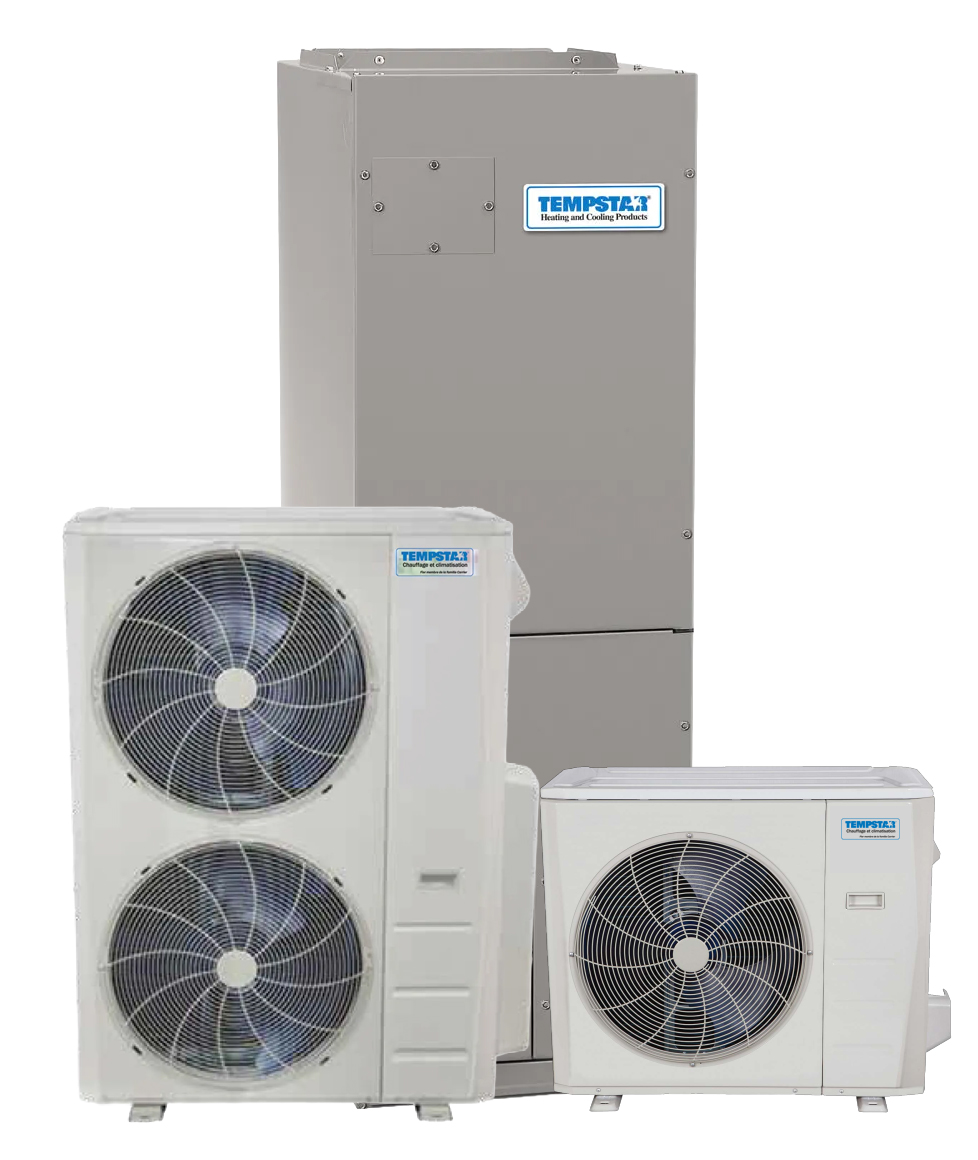

TEMPSTAR CENTRAL SIDE DISCHARGE HEAT PUMP
When you choose Tempstar heating and cooling equipment, you're choosing dependability and innovation in home comfort. We are proud to give you the latest in engineering and technology. Each unit is 100% run tested, and the design of the products to give you the best in quality, energy efficiency and reliability. Tempstar take pride in surpassing your expectations and delivering quality you can feel.
A PROUD MEMBER OF THE CARRIER FAMILY
MARQUE: TEMPSTAR
MODEL: TEMPSTAR CENTRALE
SOME CHARACTERISTICS OF THE HEAT PUMP
- -Up to 20.0 SEER and 10.4 HSPF based on outdoor unit pairing
- -Multi Poise Installation (Up Flow, Down Flow, Horizontal Right, Horizontal Left)
- -Built-in basepan heater
- -Quiet indoor operation
- -Condenser high-temperature protection
- -Refrigerant leakage detection
- -Quiet outdoor operation, as low as 54.6 dB(A)
- -Anti-corrosive fin coating
- -Built-in third-party thermostat compatibility
- -Extreme heating operation in as low as -22° F (-30° C) based on outdoor unit pairing
- -Optional Electric Heat Packages available (5, 10, 15 and 20 KW)
Models specifications and capacity
| TECHNICAL SPECIFICATIONS OF THE TEMPSTAR CENTRAL SIDE DISCHARGE HEAT PUMP | |||||||
| OUTDOOR MODEL | DLCURAH – 24ABK | DLCURAH – 36ABK | DLCURAH – 48ABK | ||||
|---|---|---|---|---|---|---|---|
| INDOOR MODEL | DLFUAAH – 24XAK | DLFUAAH – 36XAK | DLFUAAH – 48XAK | ||||
| POWER SUPPLY | 208/230 | 208/230 | 208/230 | ||||
| CAPACITY (NOMINAL) | 24 000 | 36 000 | 48 000 | ||||
